OUR MOST ADVANCED TEMPERATURE CONTROLLER PLATFORM - ELIMINATE ALL CONVENTIONAL MOLD CABLES

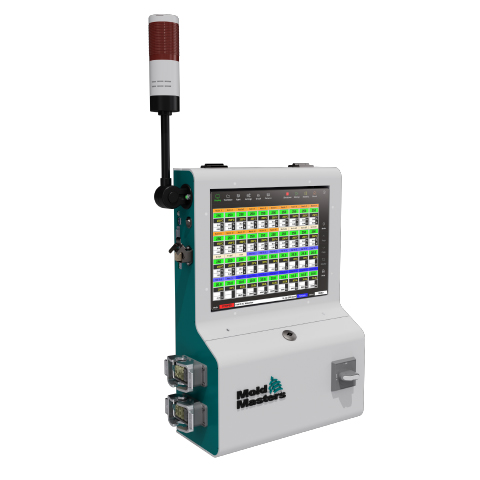

Mold-Masters NEW TempMaster M4 is a full featured advanced controller platform designed to enhance molded part quality, minimize scrap and simplify your molding cell. It incorporates many new exciting innovations including revolutionary HR-Connect Technology. Unlock your operations full potential with TempMaster.
Features
NEW HR-Connect Technology
- Completely eliminates the need for conventional mold power AND thermocouple cables.
- Eliminating these cables helps to reduce cost, weight and clutter from the molding cell.
- Connects to the mold via a single, thin lightweight cable.
- Wiring the Hot Runner system remains unchanged.
- Compatible with new and older (retrofit) Hot Runner Systems.
New Compact Form Factor
- Machine mountable to eliminate the controller footprint.
- 12” full-color touch screen.
- Electrically adjustable screen to optimize viewing angle.
- Optional lightweight compact trolley for enhanced mobility and flexibility.
High-Capacity Modular Control Card (3z-15A)
- Reduce your card requirements by up to 30% (vs. competitors).
- On-board heater and thermocouple fuses.
- High reliability minimizes downtime.
- Power to control a wide range of zones including nozzles, manifolds and more.
SmartMOLD Inside
- Standard (built-in) with every TempMaster M4 controller.
- Easily collect real-time process data.
- Integrate with your existing local ERP/MES systems.
- Receive text/email alerts.
Specifications
- Temperature Control Zones (Max): 72 @ 15A
- User Interface: Full Color LCD Touch Screen
- Display Sizes: 12" (305mm)
- Control Algorithm: APS (Adaptive Process System)
- Power Control: Phase Angle Burst Firing Modes (Time Proportional, Zero Crossing)
- Temperature Display Resolution: 1° (C or F)
- Power Response Time: 8.3ms at 60 Hz
- Temperature Scale: °C or °F (Software Selectable)
- Thermocouple: J or K-Type (Software Selectable)
- Output Voltage (Max): 264 VAC
- Supply Voltage: 200/240 3P Delta or 380/440V 3P Star (480V, 3P with transformer)
- Ports: Serial, USB and Ethernet
- Communications: SPI, Real VNC, Modbus, OPC-UA
- Languages: English, French, German, Portuguese, Spanish, Polish, Russian, Chinese, Japanese, Czech, Italian, Turkish, Danish, Hungarian.
*For more complete specifications, please refer to the product marketing literature in the “Downloads” section.
